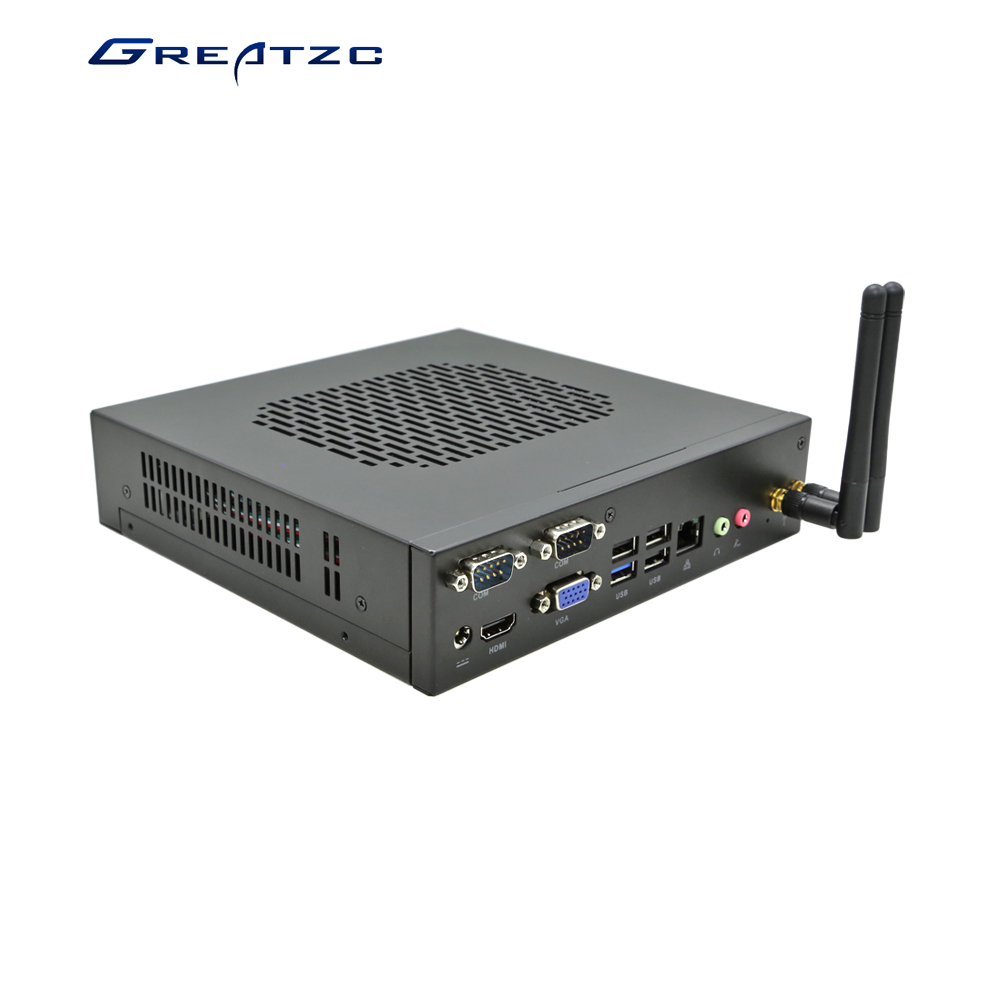

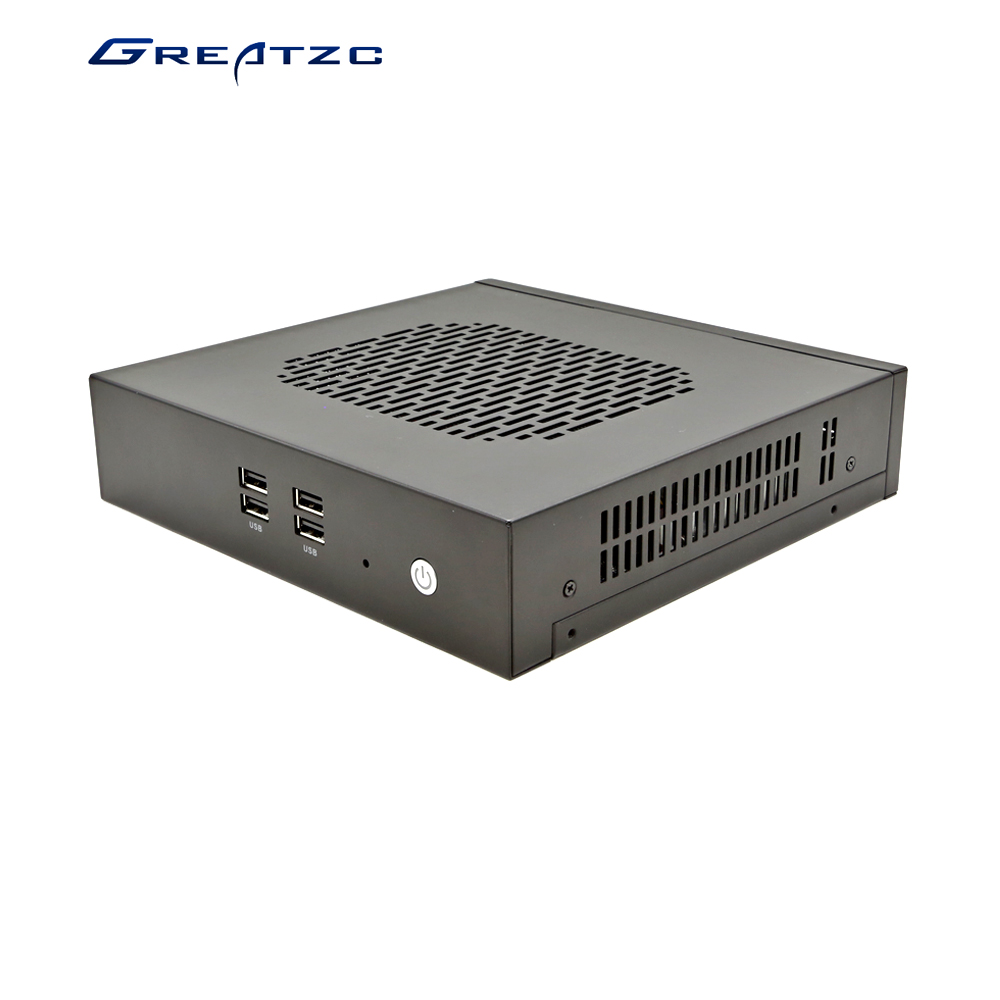

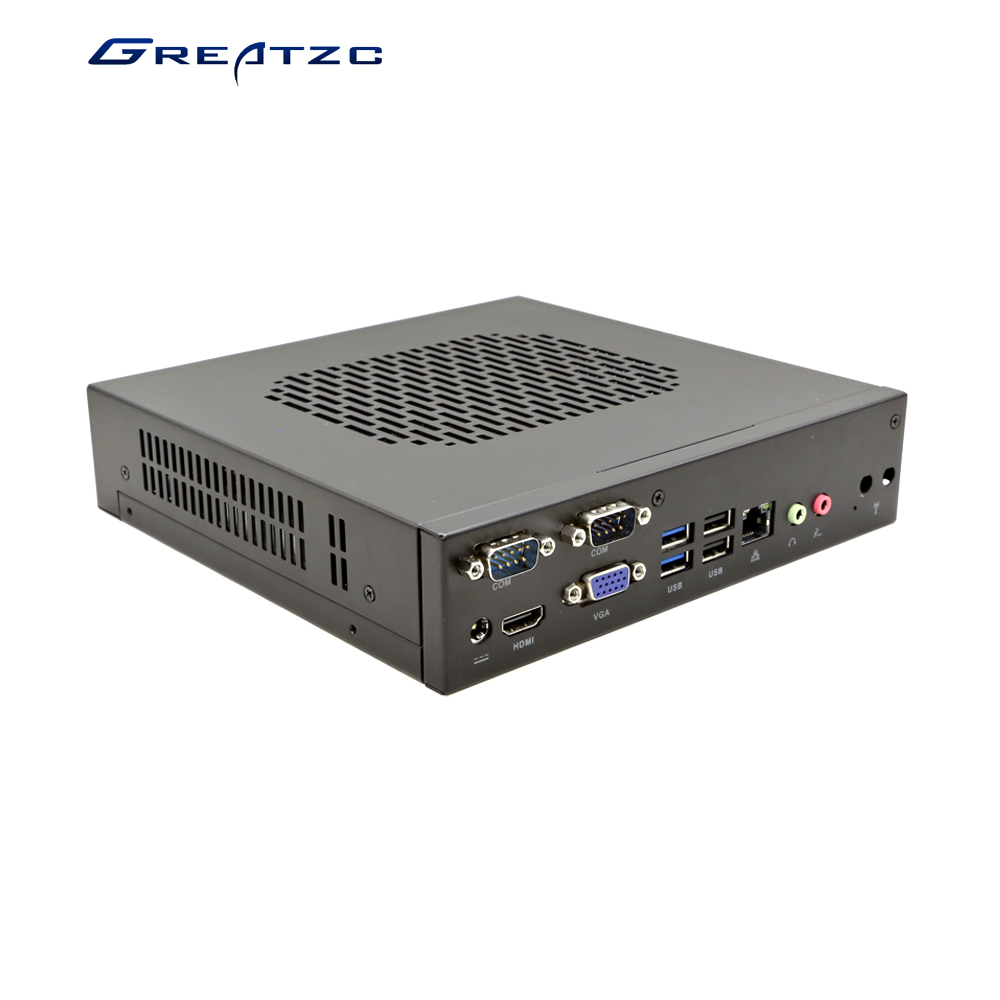

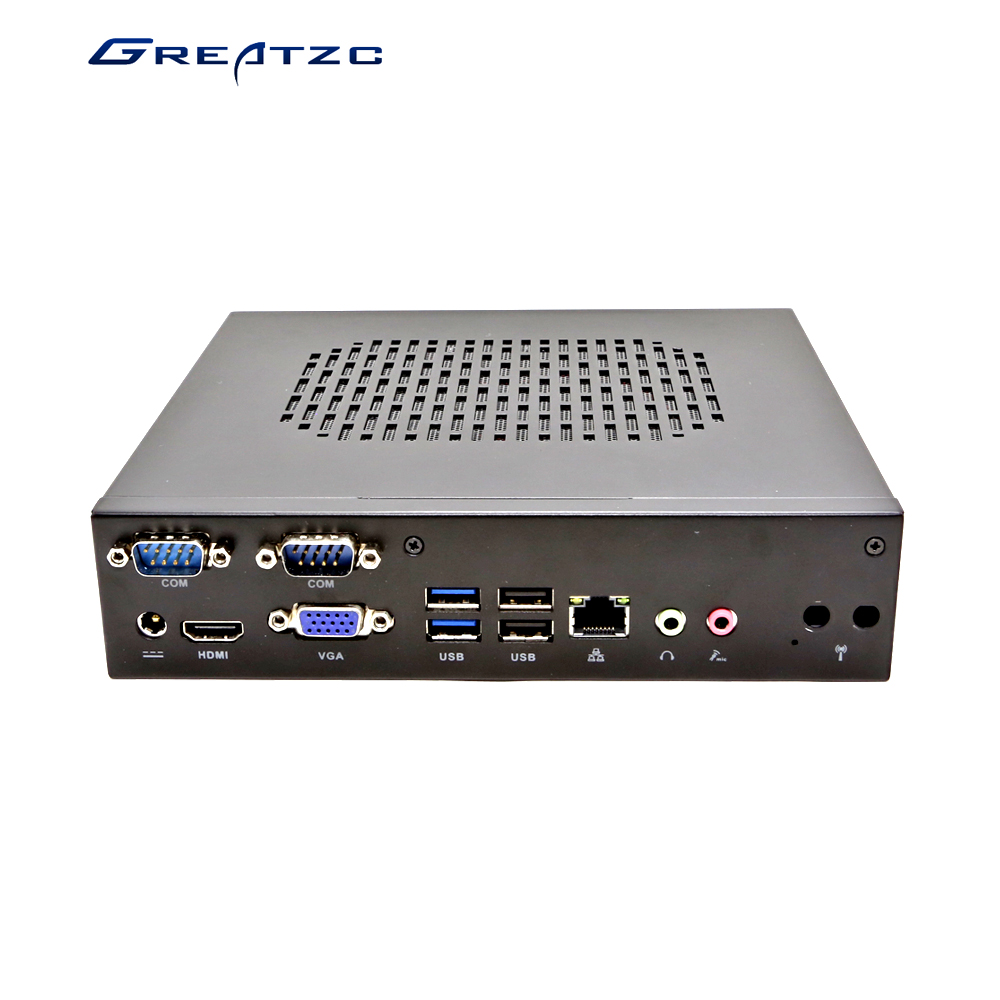

ZC-T42-1800 Fanless Mini PC With Bay Trail J1800
- Description
ZC-T42-1800 Mini PC With Bay Trail J1800,Quad Core 2.41GHz,Intel HD Graphics,
With VGA,HDMI,Support 1080p,With 1*USB3.0,7*USB 2.0,2*RS232,1*SPK&1*MIC,
WIFI Optional.
Main Features:
1.Ultra-small:Size only 190*190*42.5mm
2.Intel Bay Trail J1800,Dual Core 2.41GHz
3.With INTEL HD Graphics Card,Support 1080p
4.Double Display:With VGA&HDMI,Support Double Display
5.Excellent Heat Exchange:With Many Holes On The Case
6.With VESA Mount,Easy to Put and Move,Saving Space
7.Good Quality:Industrial Design,All Solid Cap,Stable and reliable performance
ZC-T42-1800 Fanless Mini PC Specification
|
CPU |
INTEL Bay Trail Celeron J1800 Dual Core 2 Threads 2.41GHz Turbo to 2.58GHz 1MB L2 Cache TDP only 10W |
|
Memory |
1*SO-DIMM DDR3 1600MHz Memory, MAX 8GB |
|
Hard Drive |
1*MSATA SSD 32GB,64GB,128GB,256GB 1*SATA 2.5inch HDD 500GB,1TB,2TB |
|
Graphics Card |
INTEL HD Graphics,Support 1080p |
|
Network Card |
1*Realtek 8111F,Gigabit WIFI Optional |
|
I/O Port |
1*RJ-45 1*HDMI 1*VGA 1*USB 3.0 7*USB 2.0 2*RS232 1*SPK Out 1*MIC IN 1*DC12V-19V JACK |
|
Size |
Product:190*190*42.5mm |
|
Power Adapter |
Input 100-240V(AC) Output:12V/5A(DC) |
|
Kit Contents |
Main Product,Power Adapter,VESA Mount |
