4 Gigabit Ethernet Mini Firewall PC Network Security Mini Server-4LAN/ 6LAN/ 8LAN-Shen Zhen ZeChuang Weiye Technology Co.,Ltd

4 Gigabit Ethernet Mini Firewall PC Network Security Mini Server

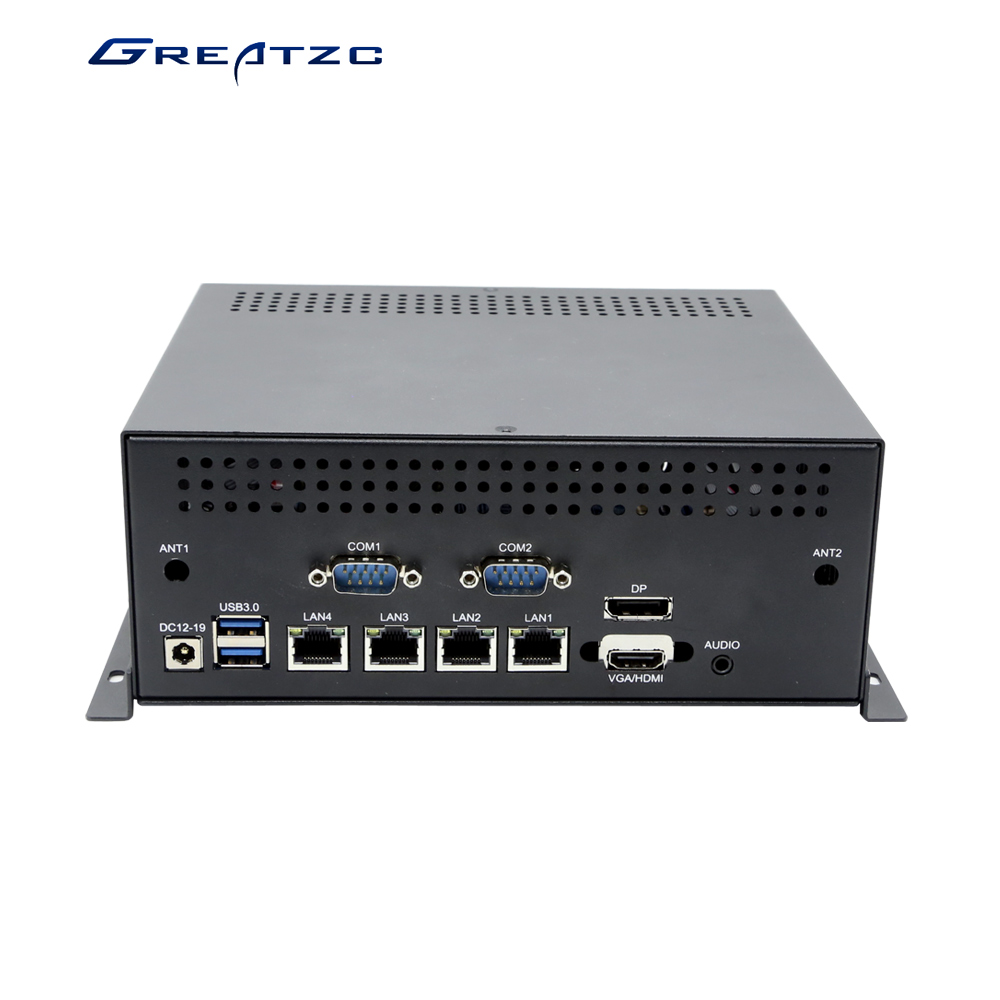

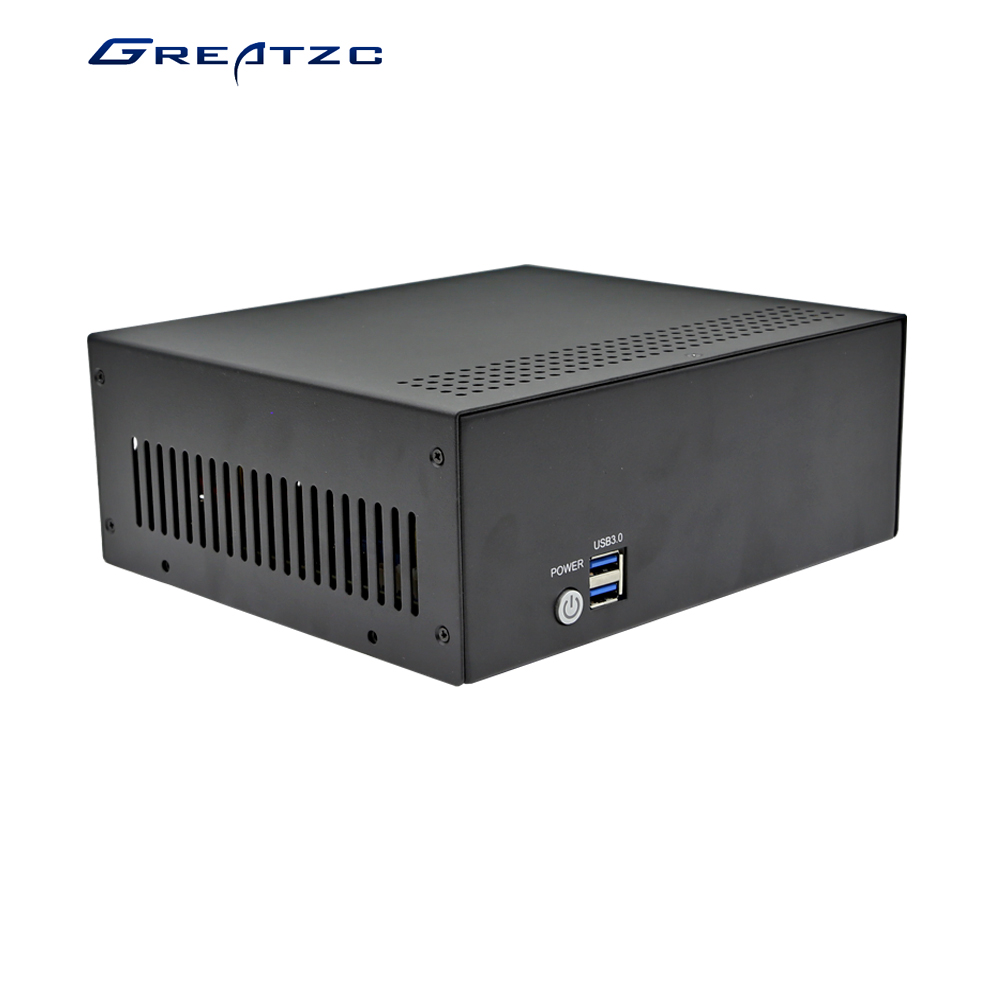

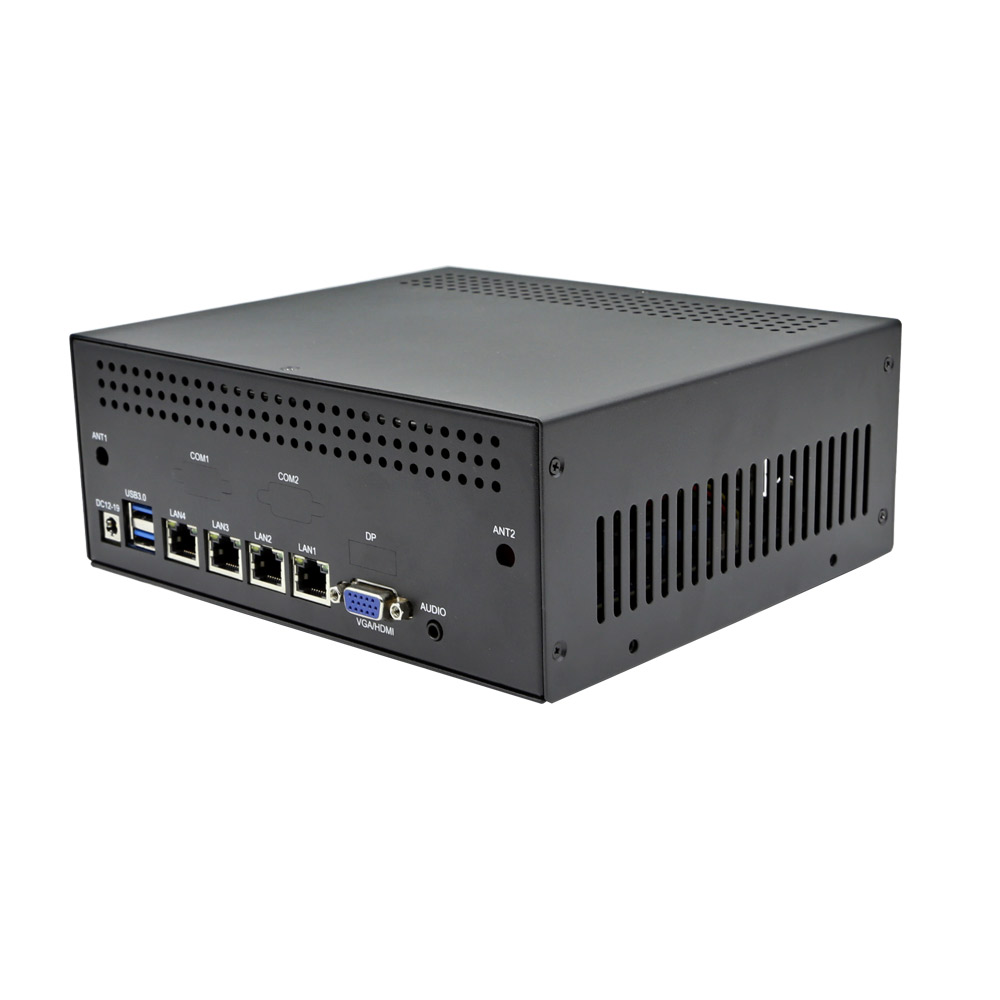

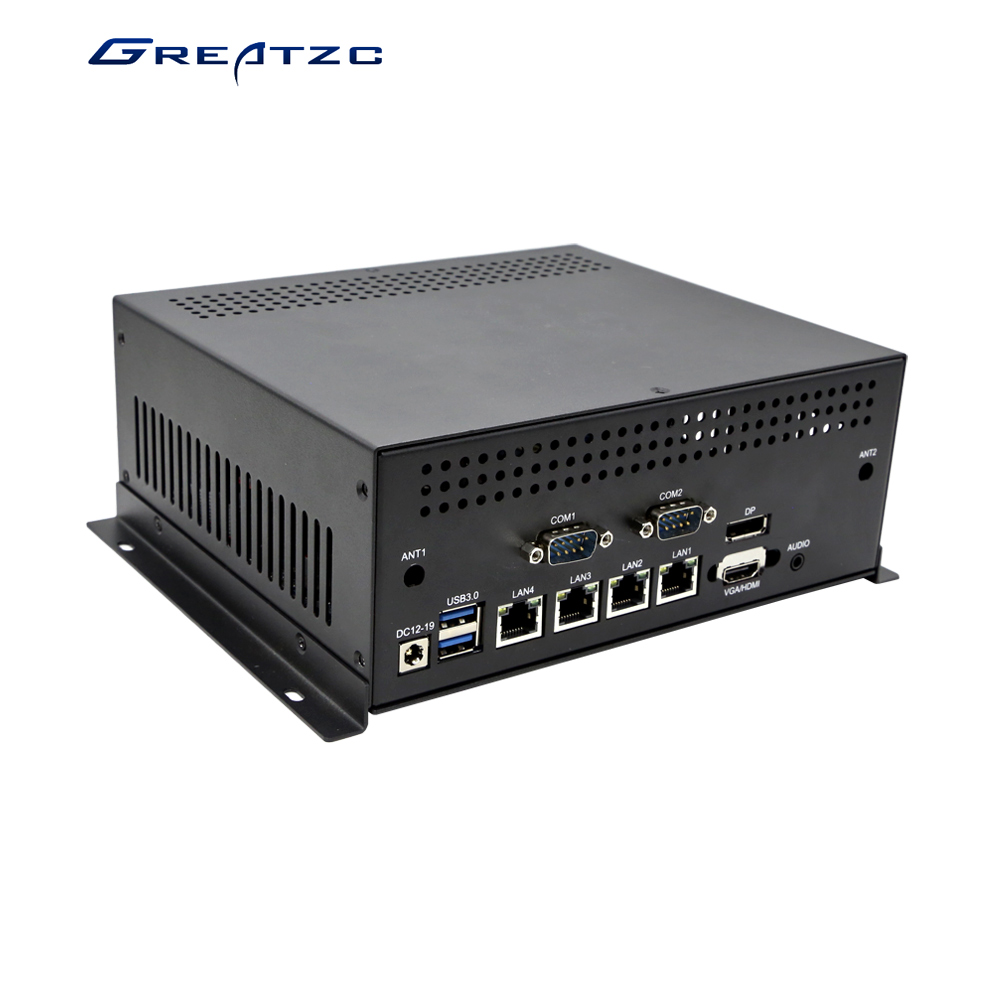

ZC-H77-H3104L With 4 Gigabit Ethernet Mini Firewall PC Network Security Mini Server

Intel H310 Chipset LGA1151 Socket 8th,9th Generation Processor i7/i5/i3/Celeron/Pentium

With 1*VGA,4*Ethernet,4*USB 3.0,2*COM Optional,WIFI,4G Module Optional

Main Features:

1.) Intel H310 Chipset,LGA1151 Core i7/i5/i3/Celeron/Pentium

2.) 4 Gigabit Intel I211 Ethernet Card

3.) 4 USB 3.0 Ports,2 COM Ports optional

4.) Rich Storage,1*3.5inch(or 2*2.5inch) +1*Msata

5.) 2*SO-DIMM DDR4 Slot,Support Max 32GB

6.) 1*M.2 2230 Support WIFI/4G/3G Module.

7.) With DIN Rail Mount,easy to mount

8.) Wide used in pfsense firewall,network server,firewall appliance,firewall vpn,network router

ZC-H77-3104L 4 Gigabit Ethernet Mini Firewall PC

Processor	Intel LGA1151 Socket Supports Intel 8th,9th Intel CPU Core i7/i5/i3/Celeron/Pentium
Chipset	Intel H310
RAM	2*SO-DIMM DDR4
Graphics Card	Processor Integrated Graphics Card
Storage	13.5inch(or 22.5inch),1*Mini SATA
Expansion Slot	1M.2 2230,Supports WIFI/3G/4G Module 1PCI-E 4X
Display Port	1*VGA
Network Card	4*Intel I211 Ethernet Card,Gigabit
I/O Ports	4USB 3.0 1VGA 1DC19V Port 4RJ45 Ports 1Power Button 13.5mm Audio(SPK+MIC)
Power Adapter	19V/6.32A
Dimension	200x175x77mm
Accessories	19V/6.3A Power Adapter,DIN Rail Mount
